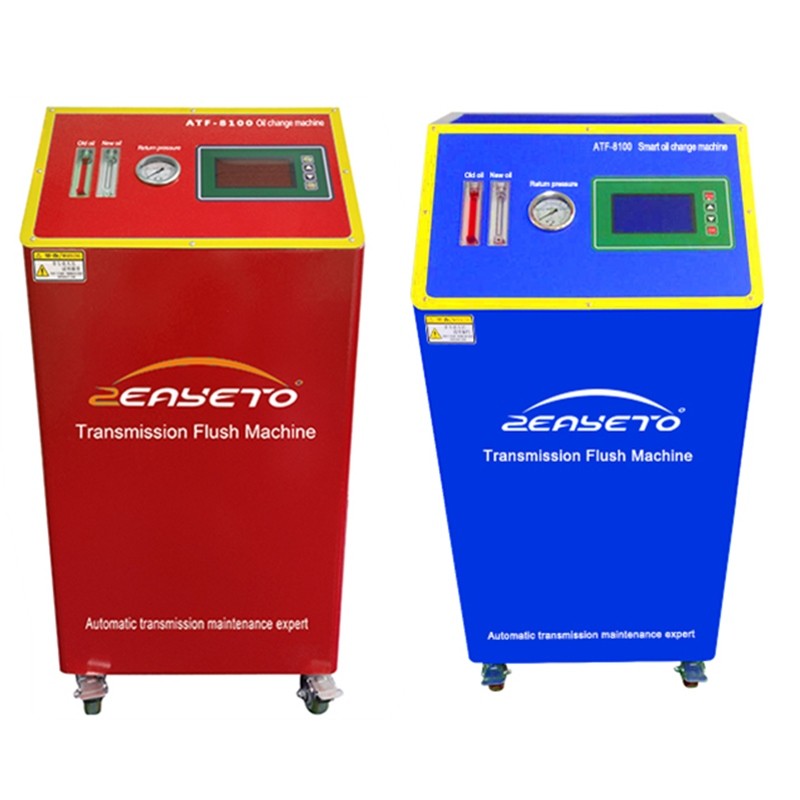

150W ATF Flush Machine Automatic Transmission Exchang Machine Power Steering Flush Machine

150W ATF Flush Machine Automatic Transmission Exchang Machine Power Steering Flush Machine

150W ATF Flush Machine Automatic Transmission Exchang Machine Power Steering Flush Machine
150W ATF Flush Machine Automatic Transmission Exchang Machine Power Steering Flush Machine150W ATF Flush Machine Automatic Transmission Exchang Machine Power Steering Flush Machine150W ATF Flush Machine Automatic Transmission Exchang Machine Power Steering Flush Machine
CategoriesTransmission Flush Machine
AlbumView larger image
BrandZeayeto
ModelATF-8100
ColorBlue
Warranty1 Year
Brand NameZeayeto
CertificationCE
Product nameAuto transmission flush machine
Advantagesvisual operating system
MaterialStainess steel
Pressure meter0~150psi
Size49*54*120cm
Applicationcar maintenance
FOB portShenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2019-12-16
Detail Information

150W ATF Flush Machine Automatic Transmission Exchang Machine Power Steering Flush Machine


Benefits:

1. Large backlit LCD screen provides valuable information and walks the technician through the service making for a faster and easier exchange

2. Roto-cast polyethylene body won’t scratch vehicle

3. Adapter rack keeping the adapters neat & organized

4. 5-inch locking caster wheels

5. Small platform does not take up a lot of room

6. Clear service hoses provide visual confirmation of fluid exchange

7. Perform more services and generate more revenue than with traditional ATF exchange equipment


Description

The ATF-8100 uses vacuum pressure to monitor the pressure between the machine and the car in real time. The machine is also equipped with a standard connector and an optional connector that can cover up to 99% of the gearbox on the market. After the assembly of our machine is completed, it is tested by the inspectors, and the accuracy of each machine is strictly controlled.



Technical parameter:

Product name: Transmission flush machine

Usage: Car transmission

Voltage: DC12V

Filter accuracy: 5µm

Gross weight: 65kg

Maximum power: 150W

Oil drum: 20L*2

Oil tube: 2.5 m

Working pressure: 0-1.6 Mpa

Package dimension: 490*535*1200mm


Operation Steps:

Step 1

Test transmission fault code

Step 2

Select connectors according to the model

Step 3

Start the engine

Step 4

Disassemble the heat dissipation pipe

Step 5

Cycle for 5-10 minutes

Step 6

Equal exchange

Step 7

Check the transmission oil level

Step 8

Road test

Step 9

Check the oil level again

Step 10

End of the oil change
