Car injector cleaning detector introduction

Car injector cleaning detector introduction
Issue Time:2019-01-17

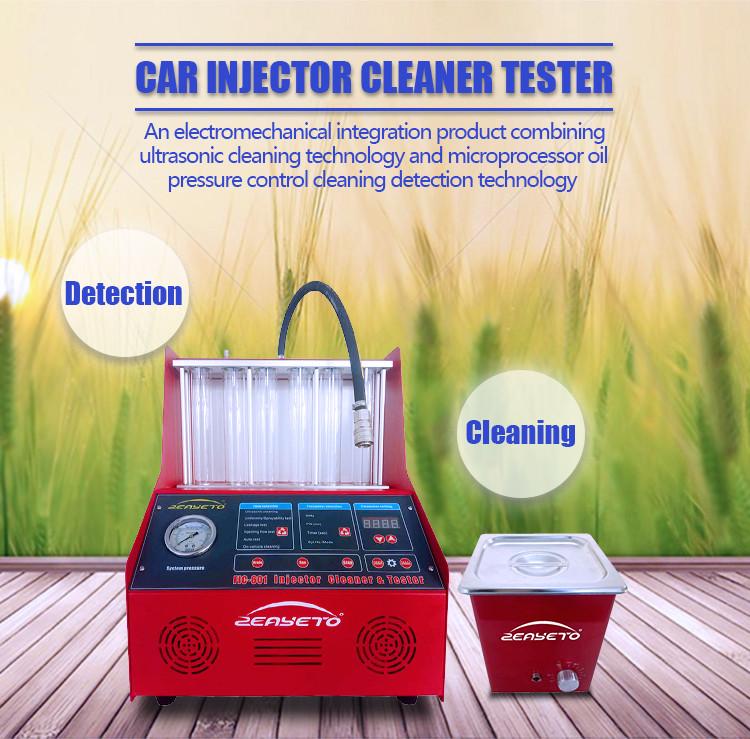

Equipment overview
       This equipment is an electromechanical integration product that combines ultrasonic cleaning technology with microprocessor oil pressure control cleaning detection technology. This equipment can simulate various working conditions of the engine, clean and test the fuel injector of the car, and can also clean and disassemble the fuel injector and the fuel supply system.

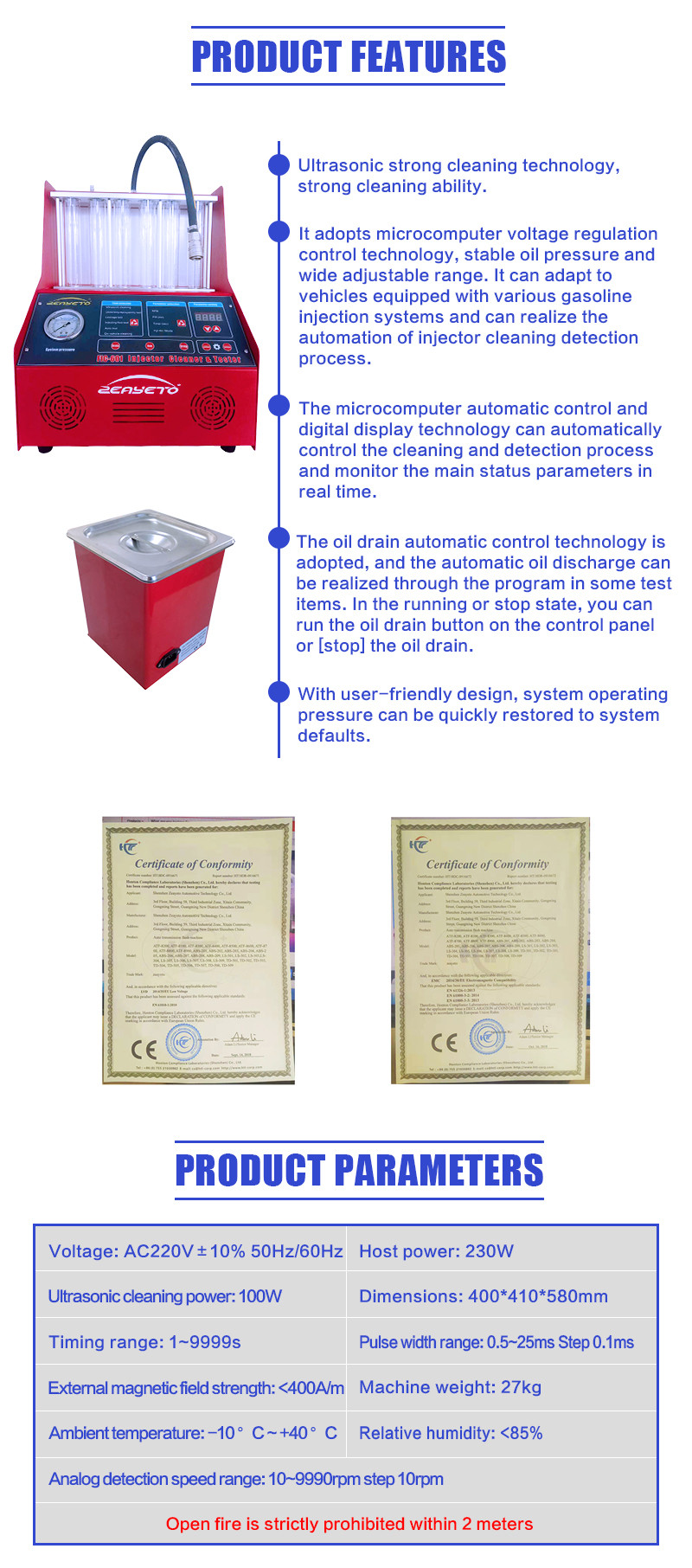

Main features
   1. Using ultrasonic strong cleaning technology, strong cleaning ability;
   2. Adopting microcomputer voltage regulation control technology, the oil pressure is stable, the adjustable range is wide, it can adapt to the automobile equipped with various gasoline injection systems, and the automation of the injector cleaning detection process can be realized;
   3. Using microcomputer automatic control and digital display technology, it can automatically control the cleaning and detection process, and monitor the main status parameters in real time;
   4. Adopting the automatic oil discharge control technology, the automatic oil discharge can be realized through the program in some  test items. In the running or stop state, the oil can be operated or (stopped) through the (drain) button of the control panel;
   5. With humanized design, the system operating pressure can be quickly restored to the system default value.

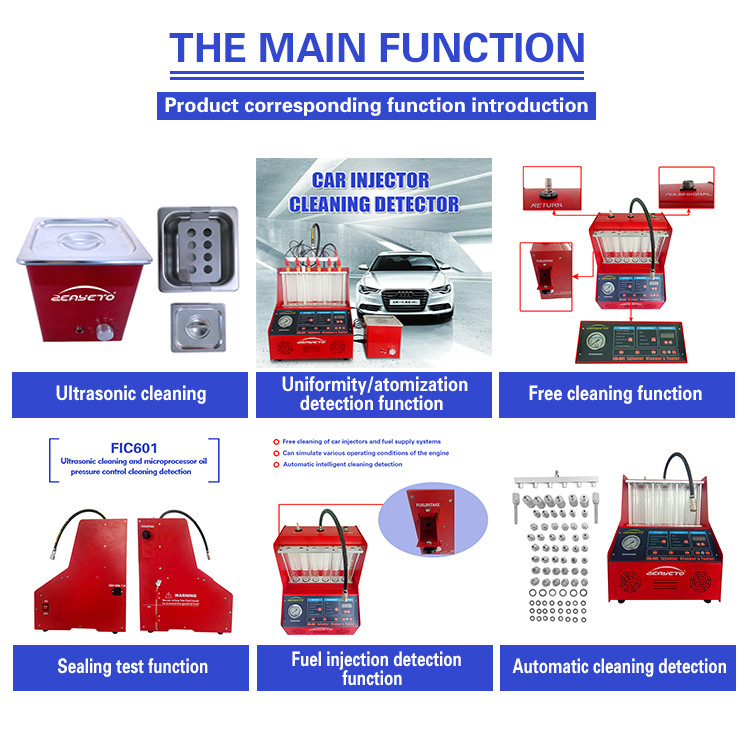

Main function
   1. Ultrasonic cleaning function
   2. Uniformity / atomization detection function
   3. Fuel injection detection function
   4. Automatic cleaning detection function
   5. Free cleaning function

Quipment parameters
   1. Voltage: AC220V±10% 50Hz/60Hz
   2. Host power: 230W
   3. Ultrasonic cleaning power: 100W
   4. Timing range: 1~9999 seconds
   5. Pulse width range: 0.5~25ms Step 0.1ms
   6. Dimensions: 400mm × 410mm × 580mm
   7. Machine weight: 27kg
   8. Working environment: ambient temperature: -10 ° C ~ +40 ° C
                                           Relative humidity: <85%
                                           External magnetic field strength: <400A/m
                                           Open fire is strictly prohibited within 2 meters
